Urethane Control Arm Bushing Kit, Rear, 70-78 240Z-260Z-280Z

Urethane Control Arm Bushing Kit, Rear, 70-78 240Z-260Z-280Z
You can choose a Z-Car from your garage, or from the selections above, to filter the store or check part fitment.
Part #:23-4137
Price: $69.95

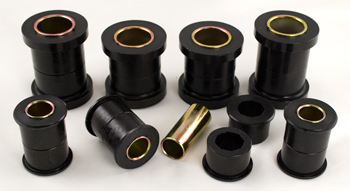

This urethane bushing upgrade includes the inner control arm bushings and outer spindle pin bushings. Includes bushings for both rear control arms.

Spindle Pin Bushing Note:
The O.E. Spindle Pin Bushings must be completely pressed out to be replaced with the Urethane bushings. Be careful that the inner surfaces of the Control Arm where the Spindle Pin bushings insert are not damaged or heavily scratched, that surface needs to be smooth for proper care of your new Urethane bushings. Professional removal and replacement of Spindle Pin Bushings recommended.

Control Arm Hardware Note:
The factory inner control arm bushings create a series of small notches in the flat control arm bolt washer. While uncommon, it is possible for these notches to cause damage to the urethane bushings (especially if the metal between the notches has been pushed above the washer surface). If you will be using your old washers, make sure to remove any material that protrudes above the surface of the washer. If your bolts or washers are beyond repair, see 14-1434-1 in Related Items for our Reproduction Control Arm Bolts.

Spindle Pin Washer Note:
Factory spindle pins use one rubber and one metal washer at each end. You will need to retain (or replace) the metal washers; however, the rubber washers are built into the urethane bushing.

Model Guide:
Datsun 240Z, 260Z, 280Z

Code Guide:
Datsun S30

Year Guide:
1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978

Some parts may not fit every version of every year listed. See product Title & Description for any application breakdowns or customization options, and contact us with any questions.

  • 1970 Datsun 240Z
  • 1971 Datsun 240Z
  • 1972 Datsun 240Z
  • 1973 Datsun 240Z
  • 1974 Datsun 260Z
  • 1975 Datsun 280Z
  • 1976 Datsun 280Z
  • 1977 Datsun 280Z
  • 1978 Datsun 280Z
