Reproduction Fuel Tank Sending Unit, 75-76 280Z

Reproduction Fuel Tank Sending Unit, 75-76 280Z
You can choose a Z-Car from your garage, or from the selections above, to filter the store or check part fitment.
Part #:11-3273-1
Price: $195.00
Share | More

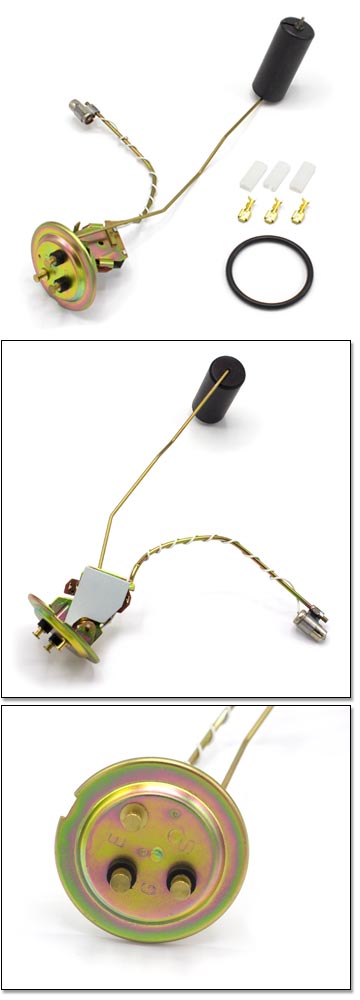

Includes:
  • (1) Fuel Tank Sending Unit
  • (1) Fuel Tank Sending Unit O-Ring
  • (1) Fuel Tank Sending Unit Connector Set*

Descriptions:
A bad fuel tank sending unit is the most common cause of a fuel gauge not reading correctly. Over time, the electrical contacts corrode, the float deteriorates, and sometimes the unit itself can even start leaking fuel. The only way to correct these issues is to replace the sending unit. This sender is a direct replacement for the original unit. Includes replacement o-ring and connector set*. We recommend inspecting the lock ring for damage as well (see 11-3281 in Related Items below).

*Connector Note:
The original sending units have a pre-installed pigtail on them, where these use the 240Z style posts. You will need to remove and modify the pigtail from your old sending unit in order to use this replacement unit. Alternatively, you can remove the connector from your car's wiring harness and wire directly to the included connectors.

Installation Note:
This sending unit installs with the post with the black grommet marked "G" pointing up.

Model Guide:
Datsun 280Z

Code Guide:
Datsun S30

Year Guide:
1975, 1976

Some parts may not fit every version of every year listed. See product Title & Description for any application breakdowns or customization options, and contact us with any questions.

  • 1975 Datsun 280Z
  • 1976 Datsun 280Z
