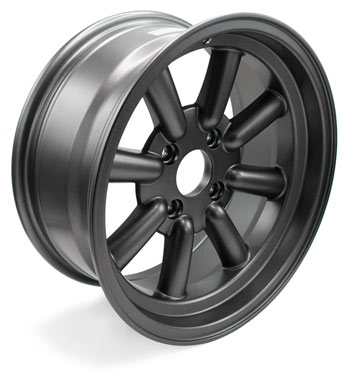

Konig Rewind Satin Graphite 16x7" Wheel Kit, 70-85 4-Lug Z/ZX

Konig Rewind Satin Graphite 16x7" Wheel Kit, 70-85 4-Lug Z/ZX
You can choose a Z-Car from your garage, or from the selections above, to filter the store or check part fitment.
Part #:25-1221
Price: $599.87
Share | More
Introductory Special: Free Shipping!

FREE SHIPPING to the contiguous (lower 48) United States (standard ground service). For Alaska, Hawaii, Military, US Territory, and international shipments, we'll discount your shipping rate accordingly! Simply complete your order (select the TBD shipping option at checkout), we'll find the best rate, and get back to you with the details (you will not be charged until you approve the amount).

  • (4) 16x7" Satin Graphite Konig Rewind Wheel
  • (16) Chrome Lug Nut
  • (4) Chrome Sleeved Valve Stem w/ Chrome Cap
  • (4) Chrome Center Cap

The two most requested wheel colors we've received are Satin Black, and all Graphite (often referred to as "Gunmetal"). We completed the Satin Black wheels a couple of years back, and now are introducing what everybody has been asking for since then, all Graphite! These Satin Graphite wheels are custom made exclusively for Motorsport Auto. The exact look of Satin finishes depend on the color and coating type used. These Satin Graphite wheels have easily been the most difficult to portray accurately with simple online pictures. Due to the "pearl" like quality of the Graphite coating, this Satin Graphite is a bit more reflective than Satin Black, but it is vastly different than Gloss Graphite. We hate to use the clich' "must see to appreciate", but in this case it may apply. These are also the first wheels we've ever received that 100% of our staff instantly thought they were "gorgeous". They look great with any color or finish of Z-Car, and are direct bolt-on, requiring no adapters, for 70-85 240Z, 260Z, 280Z, 280ZX, and 300ZX (4-Lug configuration only). Our complete kit includes 4 all-Satin Graphite wheels, 16 Chrome lug nuts, 4 Chrome Caps, and 4 Chrome sleeved valve stems (with chrome caps).

Larger Images:
Click the following for a larger full image, and two close-ups of different angles of sections of the wheel, for a better idea of how awesome this Satin Graphite color is! Note: first image is large and may take a few moments to load.

Center Caps:
As with all Konig Rewind wheels that we offer, the center caps are slightly too short for the front bearing caps (they fit without issue on the rear wheels). To run these Konig center caps in the front of your early Z-Car, the small, metal factory bearing caps must be flattened slightly (less than 1/4 of an inch) to allow room for the Konig center cap. Also, you must install the Konig center caps onto the wheels BEFORE installing the wheels onto the front of your Z, due to tight clearances. Please call if you have any questions.

Model Guide:
Datsun 240Z, 260Z, 280Z, 280ZX, Nissan 300ZX

Model Restriction:
Fits all 70-83 models with factory 4-lug hubs. For 84-85, fits non-turbo models with factory 4-lug hubs only. Not for 300ZX models with 5-lug hubs.

Code Guide:
Datsun S30, S130, Nissan Z31

Year Guide:
1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985

Some parts may not fit every version of every year listed. See product Title & Description for any application breakdowns or customization options, and contact us with any questions.
